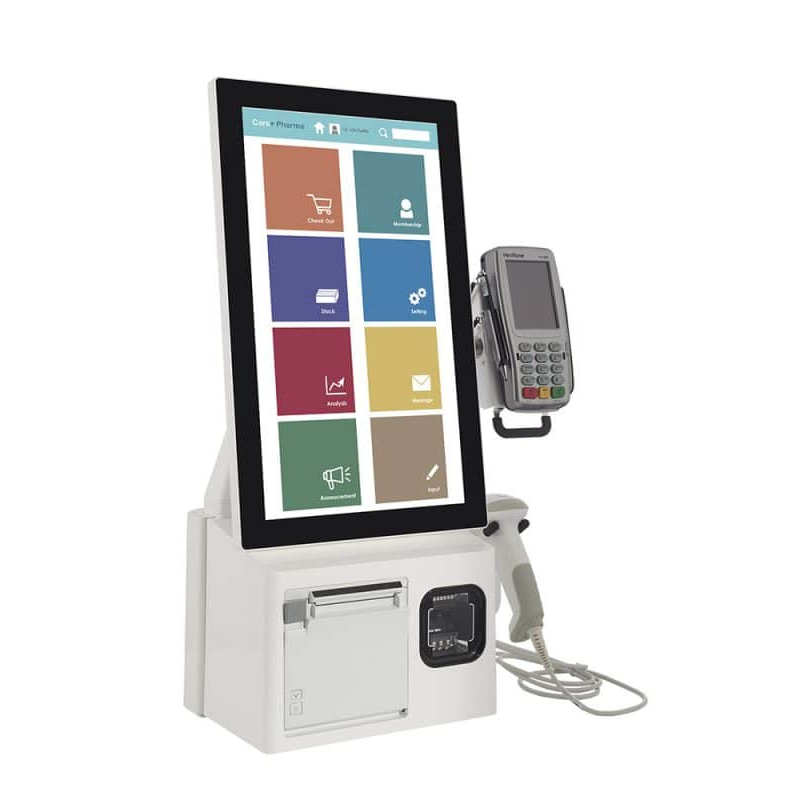

| VariKIOSK 217W (PE26) | |||
| Main Board | |||
| VariKIOSK 217W (PE26) | |||
| Processor | Intel® Celeron, i3 & i5 | ||
| Chipset | CPU Integrated | ||
| System Memory | 1 x SO-DIMM DDR5 slot, 8GB RAM as standard. Max. memory support up to 32GB) | ||
| TPM | Intel® TPM 2.0 | ||
| Display & Touch | |||
| LCD Size | 17.3″ 16:9 TFT LCD(LED backlight) | ||
| Brightness | 300nits | ||
| Resolution | 1920 x 1080, Full HD | ||
| Touch | True Flat Projected Capacitive Technology | ||
| Storage | |||
| HDD/SSD | 2.5” 256G (Default) as standard | ||
| RAID | *Project Based | ||
| Panel I/O | |||
| LAN Port | 1 x Gigabit Ethernet by RJ-45 | ||
| USB Port | 3 x USB 2.0, 3 x USB 3.1 | ||
| COM Port | 3x COM (COM1/2: RJ48 support DC+0/5/12v by BIOS setting, default setting is 0v. COM3: DB-9) |
||
| Cash Drawer | 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers | ||
| VGA | 1 x DB-15 VGA port Power enable by BIOS setting (default disable) | ||
| BUS Expansion | 1 x M.2 M Key for SSD (Option) 1 x M.2 E Key for WiFi |
||
| Type C | 1 x Type C (PD + DP) | ||
| Speaker | HD Audio, 2W Speaker x 2 | ||
| Power Switch | 1 x power on / off switch button | ||
| DC Input | 1 x Mini Din 4P (DC 19V only) | ||
| OS Support | |||
| Win 11 IoT GAC | |||
| Power Adapter (External Adapter) | |||
| DC+19V, 180watt (Power USB) | |||
| Compliance | |||
| Certifications | CE, FCC, LVD, RoHS | ||
| Ingress Protection | IP54 | ||
| Material | Main Unit: Die-Cast Aluminum ; I/O Cover:Plastic | ||
| Color | Main Unit: White | ||
| Dimension ( W x H x D mm ) |
368.3 x 217.5 x 612.8 mm | ||
| Weight | 10KG | ||
| Environmental Conditions | Operating: 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing
Storage: -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing |
||
